Wednesday, August 26, 2009

Y'Down With NPP? (my New Painting Process)


Here's a work in progress, "The Messenger." It explores the same territory as my Strange Loops series, but utilizing an experimental process.




Here I started on paper with a felt tip sketch, added watercolor, then acrylic and then oil (progressively getting more "permanent" with the media) till finally scanning (in this case, with a digital camera) and continuing to explore in Photoshop as a digital painting. Because the digital medium allows for non-destructive experimentation, I am developing several variations on the image, the most successful of which I will attempt to emulate when I return to the traditional medium. I'm currently developing a whole series of paintings with this process. The end result will be a series of digital paintings as well as a series of related (but not identical) traditional-media paintings.

Thursday, August 13, 2009

The Hazing Part II


As a companion piece to yesterday's post on hazy renders, I whipped this test up today. I realize the volume shader attributes in Mental Ray are very very sensitive, especially at larger scales. To get the above image to show up, I had to tweak the extinction parameter to an accuracy of three decimal points! After I got the haze going, I began to add lights. Here's after adding a key light but before adjusting anything:

It's kind of a cool posterizing effect with the hotspots blowing everything out. How come I can never get this look when I try to do it on purpose?
After setting up more lights I began isolating the "subject" of the composition by use of shaders. In this case, the subject is some twisty copper column:


Not sure why this vision came to me. It's just a jungle monolith of some sort. To me it represents frozen kinetic engergy, as do the shapes swirling around it. Kind of a petrified tornado. The haze adds to this stillness, this calmness that plays against the implied movement in the forms. After some shader tweaks, I produced the following renders.






As a lighting r&d test, I didn't spend much time setting it up, but I would like to return to this some day to heighten the mood with more refined models and textures, as well as glows and incandescence, more localized / patterned mist, etc.

Wednesday, August 12, 2009

Pump Up the Volume (Renders)

Squeezed in some R&D time for Sinister environments today. The goal was to convey a sense of vastness, best implied with atmospheric perspective. In painting, this is done by desaturating colors for distant objects. In the computer, you need to use volumes, which simulate particulate matter such as dust refracting light through the air, creating a "haze." Volumes are potentially a huge hit on render times. My goal was to find the fastest settings possible to deliver a sense of space and atmosphere.
The parti_volume shader in Mental Ray has always been difficult to understand, but with much trial and error I figured out a thing or two.


First I made some very simple geometry so I could have some "landscape" to light. Since this was a lighting/rendering exercise I didn't want to get caught up in modeling, so I devoted all of 20 minutes to extruding some arches with the "bridge" poly tool in Maya. After trying volume primitives (too hard to make subtle) and environment shaders (too expensive to render) I finally figured out a workable process with the parti_volume shader applied to a surrounding sphere (an atmos-sphere) that produced the above image.
Next I threw some shaders on the geometry. Everything is a variation of the Mental Ray material_x shader:


Next I added some local color and an IBL node for sky illumination (a simple ramp):



Then some bump maps and a warm directional light with cold shadows:


Some model refinements, more lights and turning on final gather:





I guess this exercise pays homage to Roger Dean, since it evokes his "arches" series. But more ... serpentine. This could be album art for a cheesy Yes cover band. Anyway, I figured out some of the esoteric mysteries of Mental Ray volumes. Hope you enjoyed the evolution.

Monday, August 3, 2009

Sly & Beaker


This is the story of two goblins and the incredible journey they underwent from concept to 3D realization. As of this writing, they are still a work in progress, as they don't have facial rigs yet, but I thought I'd take a moment to share part of the character pipeline in Ballad of Sinister with you.

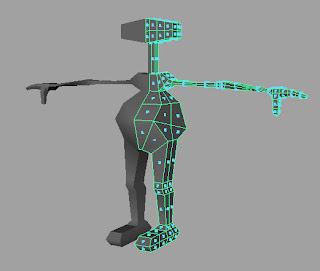

Sly and Beaker are two "crowd goblins" in the story, inspired by the above image from the storyboard. They are "B" characters that only appear briefly in two shots, and only from the waist up. For this reason, I decided to use the same body for both of them to cut down on production time (I have over 50 distinct characters to create, so anywhere a shortcut can be taken, I take it). I begin to rough in the shape by creating large extruded polygon blocks in Maya. Here it is after a couple hours work:

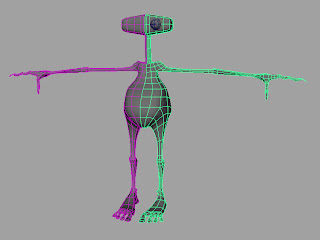

...and after four hours:

..and at five hours, the basic form is in place.

Next I begin the surfacing process, which is the most labor intensive, as surface characteristics carry most of the detail in any 3D model through a combination of color maps, displacement/bump maps and specular/gloss maps. Whereas the overall silhouette is carried by the model, surfacing provides the visual cues that convey its material properties. I use a variety of tools for surfacing, usually following this workflow:
Maya --> UV Layout --> Maya --> ZBrush --> Maya --> Photoshop --> Maya.

First I export an OBJ file from Maya (a basic 3D model file that has become a popular file exchange format). I load this into Headus UV Layout to utilize their superior UV tools. UVs are a method of mapping 2D surface coordinates to 3D objects in preparation for applying texture maps. Here is a UV snapshot after unfolding all the surfaces in UV Layout:

Not the greatest example, because these UVs are in too many pieces and not optimized, but since Sly and Beaker are B characters I am only concerned that there are no overlaps (which ZBrush abhors).
I import the newly UV'd OBJ into Maya and clean it up, then export again for ZBrush. Here it is in ZBrush:

I use ZBrush mainly to generate normal maps, for surface features too small to model (wrinkles and folds and bumps), preferring to wait to do the color maps in Photoshop (which has a much better toolset for the other types of maps). To sculpt the normal maps, I need to divide my model about 4 or 5 times (higher resolution=more polygons=more detail). Here it is divided but not sculpted:

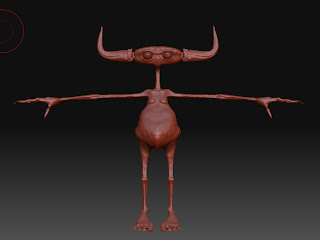

Using a variety of brushes (but in this case mainly the Rake, Elastic and Clay Tubes brushes) I add surface features:

Upon exporting from ZBrush, the models look like this:


video video

But what is exported back into Maya isn't the model, but a "normal map," which is a 2D representation of 3D data that will distort the surface of the model in Maya. The map looks like this:

...but when applied to the model in Maya it looks like this:


Remember, this is the same low-rez model we saw before, but it looks much more detailed thanks to the miracle of surface normal perturbation. (Don't worry what that means.)

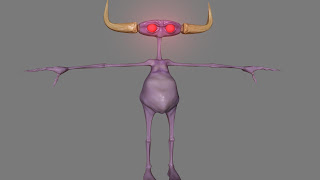

I then rough-in a color map using Maya's own 3D paint tools - basic color is what I'm after. I'll refine it later in Photoshop.


Next I set up basic shaders in Mental Ray. I use the sss_fast_skin shader in Mental Ray because it is a good balance between fast and full-featured subsurface scattering (the scattering of light in a translucent material creating an interior "glow" when backlit). I throw some lights in the scene to try it out and test render:


See the subtle translucency in the skinny parts of the body? You can include indirect lighting (Final Gather) in the subsurface scattering evaluation, for an over-the top effect:

Great for 3D gummy bears.

Now I export an OBJ for Photoshop CS4, which can import 3D objects (and in CS4 you can paint right on them!) This is the best place to do map tweaks since you can use layers and masks and all the other goodness Photoshop is known for. Hooray for CS4. (One catch -it has to be the very expensive "Extended" edition of CS4.) Also in CS4, I paint and export maps for specularity/glossiness and any other maps I need - very easy to do by duplicating then modifying layers in Photoshop and saving them out accordingly.

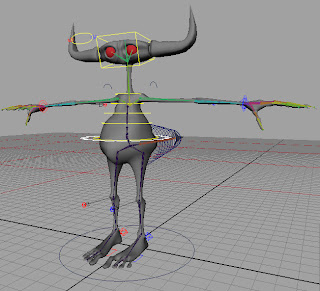

Back in Maya, I hook up all the maps and then turn my attention to rigging. I use a cobbled-together library of rigging scripts to automate the body rig procedure, doing the overall biped first and then linking in various appendages such as ears and tails.


I always put off facial till last since it takes the longest and I can go ahead and start blocking out my scenes with the basic body rig. I do some quick skin weighting and then a quick animation to test things out. If it's a go, I can start referencing this guy into shots of the movie at this point. I do most of the layout of the movie with the characters at this stage, with the idea that I will add facial later, after lighting but before animation.

So that's a rundown of the basic character creation pipeline for Ballad of Sinister. Here they are in all their ready-for-3D-layout glory:


video video
